W8IO Rooftowers LLC - 8 Foot Heavy Duty Ham Roof Tower

(updated 24 January 2022)

Models IO-810HD and IO-815HD full kits are not available at this time.

IO-810HD Ham Roof Tower  (full kit) - Currently not available,  Partial Kit (without legs) - email me for current price

Tower Height 8 feet (96 inches)
Shipping Weight 62 lbs.
Base Width 32 inches
Max. Antenna Wind Area at tower top 12 sq. ft. at 80 mph
Max Rotor + mast + antenna weight 200 lbs.
Tower Top Width 5 inches
Rotor Plate location from Top 41.5 inches
Rotor Mounting Options Hy-Gain or Yaesu (specify when ordering)
Thrust Bearing Mounting Options Yaesu GS-065 or GS-050 (specify when ordering)
Fixed (non-rotating) Mast Option UMB-1 (specify when ordering)
Leg and shelf material 6061-T6 aluminum (3/16" thick x 2" angle)
Foot material 6061-T6 aluminum (1/4" thick x 2" angle)
X-Brace material 6061-T6511 aluminum (3/16" x 2" flat)
Assembly Hardware 5/16"-18  18-8 stainless steel
Foot to Leg hardware 3/8"-18  18-8 stainless steel
Lockwashers/nylon locknutsYes (specify when ordering)
Holes Deburred Yes
Part Edges Deburred Yes
Climbable Yes - with tower climbing belt or harness

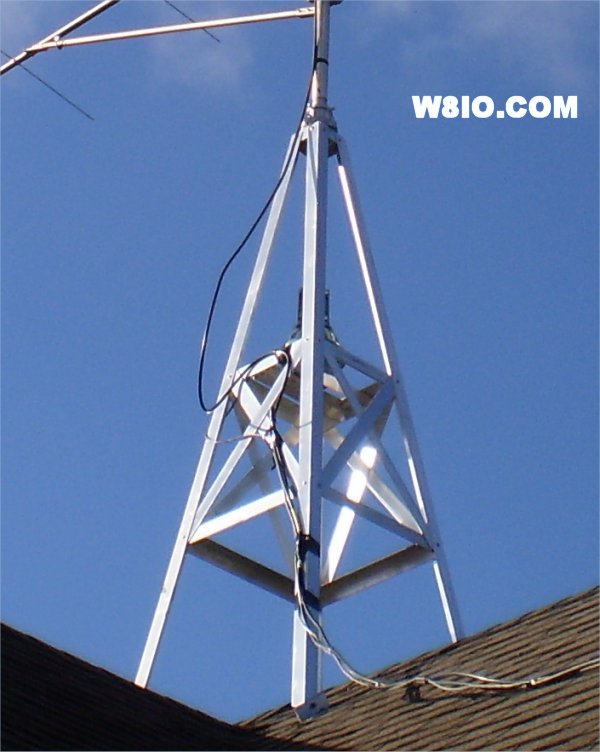

W8IO 8 foot heavy duty roof tower  W8IO 8 foot heavy duty roof tower

          Model IO-810HD

The IO-810HD is perfect for moderate sized HF beam antennas such as the Hy-Gain 203BA, 204BA, Explorer-14, TH7DX, KIO 5-band Hex Beam, ... The IO-810HD is also one of the best roof towers to use for stacking a VHF beam along with a small HF beam.

Assembly and Installation Manual for IO-810HD (8 foot) roof tower

Model IO-810HD Manual 27Mar17

It has become very expensive to ship the 8 foot tall roof towers! If you can buy the 8 foot tower legs locally and drill the holes, I can cut, drill and ship you the shorter parts at a reasonable cost. 6061-T6 aluminum angle can be purchased through OnlineMetals.  They have warehouse locations in Toledo, OH; Wallingford, CT; Atlanta, GA; Dallas, TX; Los Angeles, CA and Seattle, WA. Speedy Metals has warehouse locations in Milwaukee, WI; Appleton, WI; Rockford, IL; Fraser, MI.  Zoro has 6061 aluminum angles and orders over $50 ship free!
