W8IO Rooftowers LLC - 6 foot Heavy Duty Ham Roof Tower

(updated 10 Oct 2023)



IO-610HD Ham Roof Tower

Specifications


Tower Height 6 feet (72 inches)
Shipping Weight 49 lbs.
Base Width 27 inches
Max. Antenna Wind Area at tower top 12 sq. ft. at 80 mph
Max. Antenna + Rotor + Mast weight 200 lbs.
Tower Top Width 5 inches
Rotor Plate location from Top 41.5 inches (bottom shelf)
Maximum Mast Diameter 2.5 inches
Maximum Mast Length 7 feet (84 inches)
Rotor Mounting Options Hy-Gain or Yaesu
Thrust Bearing Mounting Options Yaesu GS-065 or GS-050
Fixed (non-rotating) Mast Option UMB-1
Leg and shelf material 6061-T6 aluminum (3/16" thick x 2" angle)
Foot material 6061-T6 aluminum (1/4" thick x 2" angle)
X-Brace material 6061-T6511 aluminum (3/16" x 2" flat)
Assembly Hardware 5/16"-18  18-8 stainless steel
Foot to Leg hardware 3/8"-16  18-8 stainless steel
Lockwashers/nylon locknutsYes
Holes Deburred Yes
Part Edges Deburred Yes
Climbable Yes - with tower climbing belt or harness

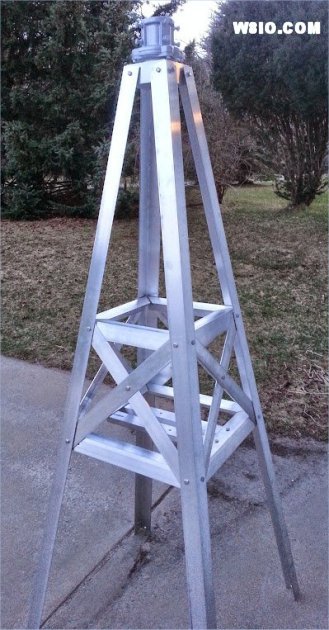

W8IO 6 foot roof tower  W8IO 6 foot roof tower

                     Model IO-610HD

The IO-610HD is perfect for moderate sized HF beam antennas such as the Hy-Gain Explorer-14, Hy-Gain TH3Mk2, Mosley CL33M, TA33M, TA34XL, KIO 5-band Hex Beam, Traffie Tech HX-5Bi, DX-Engineering HEXX beam, K4HEX hexagonal beam ...
